Product/Service Description

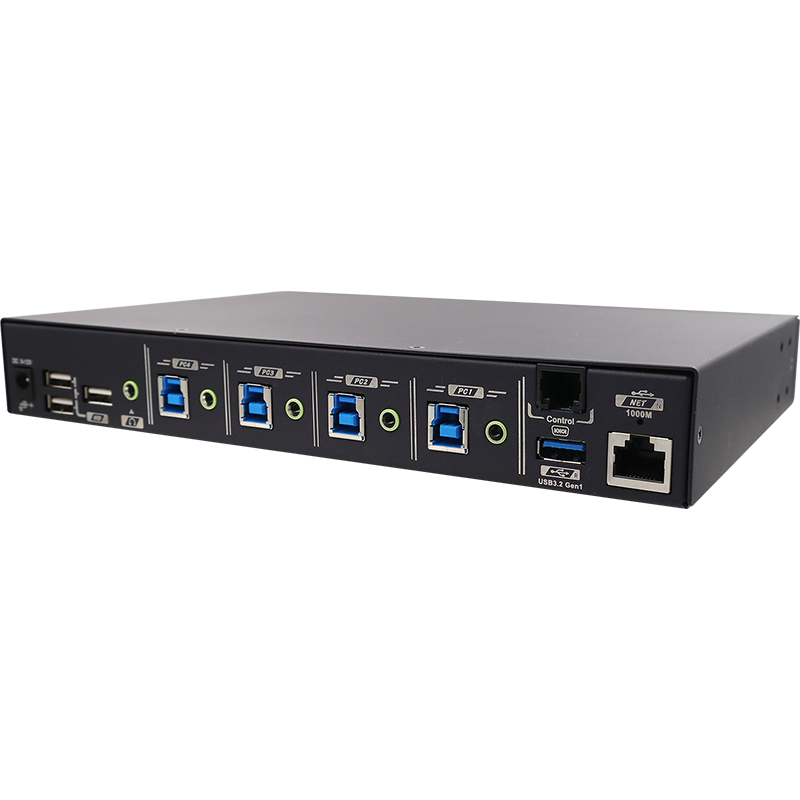

PBKG-2104, 4 Ports 4K DisplayPort Multi Viewer KVM Switch with Mouse Roaming, built-in Scaler, and instant switch functions. PBKG-2104 switches between 4 computers via front panel push buttons, hotkey control, or mouse roaming function, and supports seamless switch in single-view mode without any postpones. The Multi Viewer KVM Switch is compatible with most popular resolutions up to 4K@30Hz ( 4:4:4 ), 6:9/21:9/32:9 Aspect Ratios included.
PBKG-2104 has built-in Multi Viewer video processor, so that it can present quad-view image with any kind of display and provide various video layout patterns ( Quad-View / 1+3 / 1+4 / Dual-View / Single-View ). User may also apply the mouse roaming function to switch between computers by moving mouse cursor across screen borders. The 1+3 mode to display one large view ( main control ) and 3 small views ( residuals ) on the monitor. In the 1+3 mode there is a color bar placing between the residual views to indicate which computer the main view is.
For example, a 3440x1440 monitor may be divided into a 2560x1440 large view ( main control ) and 3 small views ( residuals ), and the either the large view or small views can be configured to pixel-to-pixel matching to provide the best clarity based on user”¦s requirement.
The traditional PbP function of monitors which either allows the videos to be stretched ( distorted ) to fill the monitor or allows the video to be shrink to fit the monitor ( small videos with black spaces ).
Rextron's full-frame PbP technology allows the computers to send exactly pixel-to-pixel matching video that fills the monitor so that the image can be without distortion/black spaces.
In most cases, user may optimize the clarity ( pixel-to-pixel matching ) of the main view by set the resolution according to the main computer ( residual views down-scaled ), and set resolution according to the residual computers in the rare cases where the best clarity ( pixel-to-pixel matching ) of residual views are required ( main view up-scaled ).
Features:
”½ Allows 4 Computers Sharing 1 Set of KVM Console
”½ Supports Most Popular Resolutions Up to 4K30Hz 4:4:4
”½ Multi-View PIP/PBP Modes ( Quad-View / 1+3 / 1+4 / Dual-View / Single-View )
”½ Adjustable Resolution to Optimize the Clarity of Either the Main View or the Residuals
”½ Mouse Roaming Switch Gives Best Users' Experience
”½ On-Screen Color Bar ( Square ) to Indicate Which Port Is Currently Under Control
”½ Seamless Switch between 4 Computer Ports ( Single-View Mode )
”½ USB 2.0 Port Supports Most Popular USB Devices Including WACOM & Touch Screens
”½ 3.5mm Speaker and Microphone Switch Covers Most Audio Applications
”½ HDCP 1.4 Compliant
”½ Supports Windows, Linux, Chrome O.S
Please visit our website www.rextron.com for the product in detail.
PBKG-2104 has built-in Multi Viewer video processor, so that it can present quad-view image with any kind of display and provide various video layout patterns ( Quad-View / 1+3 / 1+4 / Dual-View / Single-View ). User may also apply the mouse roaming function to switch between computers by moving mouse cursor across screen borders. The 1+3 mode to display one large view ( main control ) and 3 small views ( residuals ) on the monitor. In the 1+3 mode there is a color bar placing between the residual views to indicate which computer the main view is.
For example, a 3440x1440 monitor may be divided into a 2560x1440 large view ( main control ) and 3 small views ( residuals ), and the either the large view or small views can be configured to pixel-to-pixel matching to provide the best clarity based on user”¦s requirement.
The traditional PbP function of monitors which either allows the videos to be stretched ( distorted ) to fill the monitor or allows the video to be shrink to fit the monitor ( small videos with black spaces ).
Rextron's full-frame PbP technology allows the computers to send exactly pixel-to-pixel matching video that fills the monitor so that the image can be without distortion/black spaces.
In most cases, user may optimize the clarity ( pixel-to-pixel matching ) of the main view by set the resolution according to the main computer ( residual views down-scaled ), and set resolution according to the residual computers in the rare cases where the best clarity ( pixel-to-pixel matching ) of residual views are required ( main view up-scaled ).
Features:
”½ Allows 4 Computers Sharing 1 Set of KVM Console
”½ Supports Most Popular Resolutions Up to 4K30Hz 4:4:4
”½ Multi-View PIP/PBP Modes ( Quad-View / 1+3 / 1+4 / Dual-View / Single-View )
”½ Adjustable Resolution to Optimize the Clarity of Either the Main View or the Residuals
”½ Mouse Roaming Switch Gives Best Users' Experience
”½ On-Screen Color Bar ( Square ) to Indicate Which Port Is Currently Under Control
”½ Seamless Switch between 4 Computer Ports ( Single-View Mode )
”½ USB 2.0 Port Supports Most Popular USB Devices Including WACOM & Touch Screens
”½ 3.5mm Speaker and Microphone Switch Covers Most Audio Applications
”½ HDCP 1.4 Compliant
”½ Supports Windows, Linux, Chrome O.S
Please visit our website www.rextron.com for the product in detail.
